ComfyUI Is Code You Can See

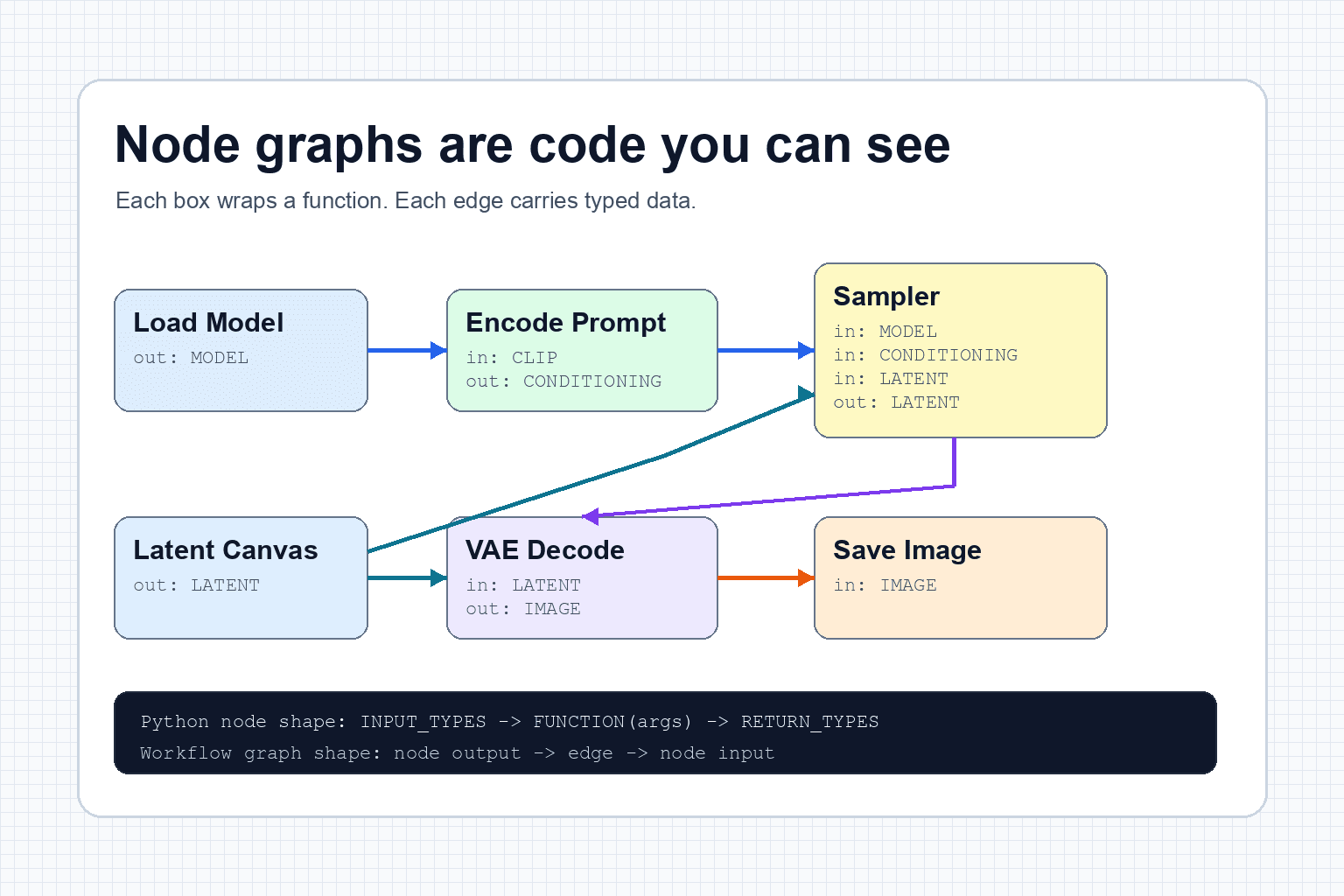

ComfyUI looks like a canvas of boxes and wires, but underneath that visual surface is a structured program. A node is usually a Python class or function with declared inputs, declared outputs, and a method that runs when the workflow reaches that node.

The basic translation is simple:

• A node is a function or object with parameters.
• An input socket is a typed argument.
• An output socket is a typed return value.
• An edge is data moving from one return value into another argument.
• The workflow is a graph that tells the executor what can run and in what dependency order.

Node software works because it makes structure visible. In plain code, the user has to infer the pipeline from function calls, variable names, file paths, and control flow. In a node graph, the shape of the computation is on screen.

That visual shape solves several problems at once:

• The data path is visible. You can see where the model, prompt, latent, image, or mask goes.
• The workflow is modular. You can replace one sampler, one model loader, or one resize step.
• The graph is inspectable. A broken edge or wrong datatype is easier to spot than a hidden variable bug.
• The result is reusable. A saved graph becomes a shareable production recipe.
• The interface invites experimentation. Users can branch, bypass, compare, and duplicate parts of the workflow.

This is why ComfyUI feels technical but still creative. It does not hide the machine. It gives the machine a readable map.

The official ComfyUI custom node documentation describes a node as a Python class with properties such as INPUT_TYPES,RETURN_TYPES, andFUNCTION. The function receives named inputs and returns a tuple that matches the declared output types.

A simplified custom node can be imagined like this:

class BrightnessNode:
    @classmethod
    def INPUT_TYPES(cls):
        return {
            "required": {
                "image": ("IMAGE", {}),
                "amount": ("FLOAT", {"default": 1.0}),
            }
        }

    RETURN_TYPES = ("IMAGE",)
    RETURN_NAMES = ("image",)
    FUNCTION = "apply"
    CATEGORY = "examples"

    def apply(self, image, amount):
        adjusted = image * amount
        return (adjusted,)

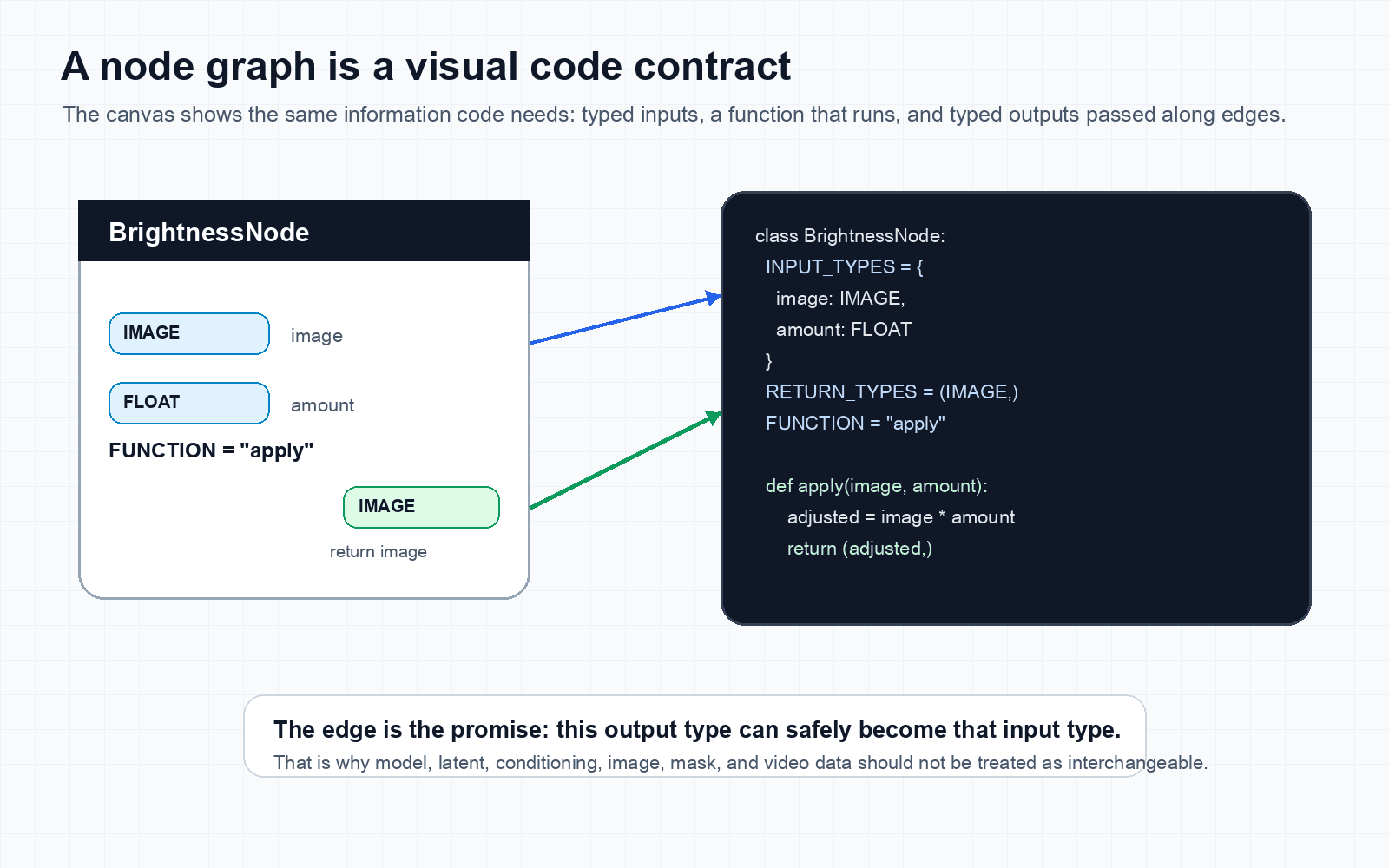

On the canvas, that code becomes a box:

BrightnessNode

inputs:
  image  : IMAGE
  amount : FLOAT

output:
  image  : IMAGE

run:
  apply(image, amount)

The node UI is not separate from the code. It is a form generated from the code contract. The reason the edge can connect or fail to connect is that the system knows the declared data types.

The edge is the important part people often underestimate. It is not only a line. It is a promise that the output of one node is suitable input for another node.

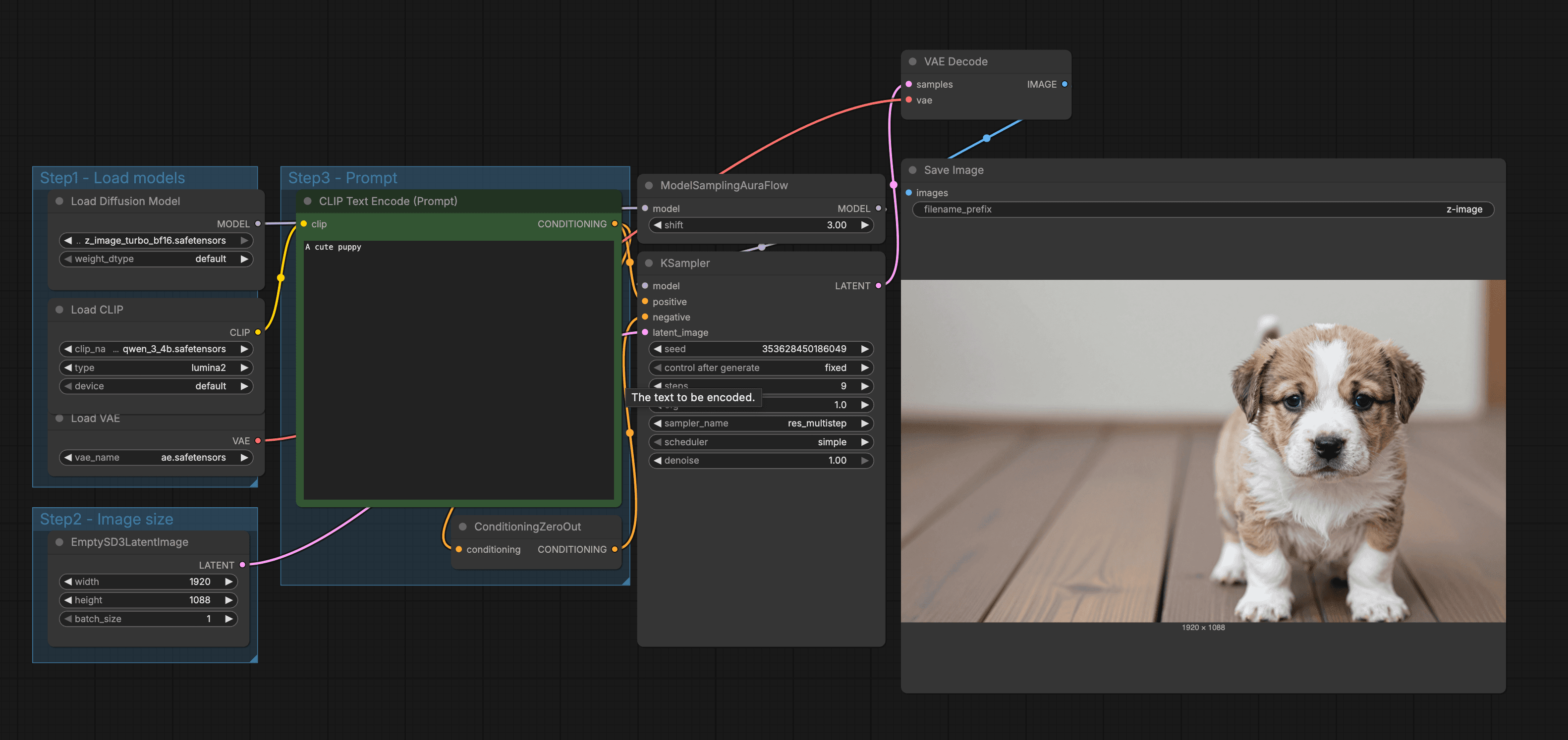

In an AI image workflow, those contracts might look like this:

Load Diffusion Model  -> MODEL        -> Sampler
Text Encoder          -> CONDITIONING -> Sampler
Empty Latent Image    -> LATENT       -> Sampler
Sampler               -> LATENT       -> VAE Decode
VAE Decode            -> IMAGE        -> Save Image

If that same workflow were written as ordinary code, it might look more like this:

model = load_model("z_image_turbo")
conditioning = encode_text(clip, "A cute puppy")
latent = create_latent(width=1920, height=1088, seed=353628450186049)

sampled_latent = sample(
    model=model,
    positive=conditioning,
    latent_image=latent,
    steps=9,
    cfg=1.0,
    sampler_name="res_multistep",
)

image = vae_decode(sampled_latent, vae)
save_image(image, filename_prefix="z-image")

The visual graph and the code are not identical, but they represent the same dependency structure. The graph says: this thing cannot run until these inputs exist.

A node graph is usually executed by walking the dependency graph. If the final output is a saved image, the system works backward and asks what the save node needs. It needs an image. The image comes from VAE decode. VAE decode needs a latent and a VAE. The latent comes from the sampler. The sampler needs a model, prompt conditioning, and a starting latent.

That gives the executor a dependency order:

1. Load model
2. Load text encoder
3. Load VAE
4. Encode prompt
5. Create latent canvas
6. Run sampler
7. Decode latent to image
8. Save image

The visual layout does not have to be left-to-right. The real order comes from edges and data dependencies, not the physical position of the boxes. This is one of the reasons node graphs can remain flexible while still being executable.

ComfyUI also caches outputs and can avoid rerunning nodes when their inputs have not changed. That is a major practical advantage. If you only change the save prefix, the model loader should not need to reload a large model from disk.

Node graphs are especially strong when the work is technical and visual at the same time. Creative AI, 3D, compositing, audio, automation, shaders, and game logic all share a useful property: the user wants to try many small changes without rebuilding the whole system.

Nodes help because they support creative iteration:

• You can swap a node without rewriting the whole workflow.
• You can branch one output into two experiments.
• You can compare paths side by side.
• You can group a repeated pattern into a reusable component.
• You can keep complex logic visible for review.

ComfyUI is part of a long lineage of node-based and flow-based software. The domains differ, but the pattern is the same: boxes represent operations, edges represent data or control, and the graph becomes a program.

The difference is the payload. ComfyUI often moves models, latents, images, masks, conditioning, and video frames. Node-RED might move messages. Blender might move geometry. Houdini might move geometry, images, channels, tasks, or USD data. The visual grammar remains familiar.

Node graphs are powerful, but they are not automatically simpler than code. A large graph can become hard to read if it has crossing edges, repeated logic, unnamed groups, and hidden state.

The main failure modes are predictable:

• Graphs can become visually messy faster than text code.
• Copying node groups can create duplicated logic that is hard to update later.
• Some state is hidden in widgets, dropdowns, file paths, and seed values.
• Versioning a visual graph can be harder than reviewing a small code diff.
• Custom nodes can hide complex or risky code behind a friendly box.

The best node workflows are documented like code. They use clear groups, meaningful names, stable inputs, saved examples, and small reusable components.

AI generation is not one operation. It is a chain of decisions: which model, which prompt encoder, which reference image, which latent size, which sampler, which scheduler, which postprocess step, which save format, and which branch becomes the final output.

A chat box is excellent for quick intent. A node graph is excellent for production control. It lets the user see the actual mechanism, preserve it, edit it, and share it. That is why ComfyUI has become so useful for people who want to understand and control generation rather than only ask for a result.

This article uses official documentation where possible, because node-based tools use similar words in slightly different ways.

• ComfyUI custom node properties for Python node classes, input types, return types, function names, and caching behavior.
• Node-RED concepts for nodes, flows, messages, wires, and the browser workspace model.
• Blender Geometry Nodes manual for procedural geometry work through nodes.
• Unreal Engine Blueprints documentation for node-based gameplay scripting in Unreal Editor.
• Houdini networks and parameters for nodes as scene building blocks organized in networks.
• TouchDesigner operator documentation for operators as nodes that output data to other operators.
• n8n workflow documentation for workflows as connected nodes used to automate a process.
